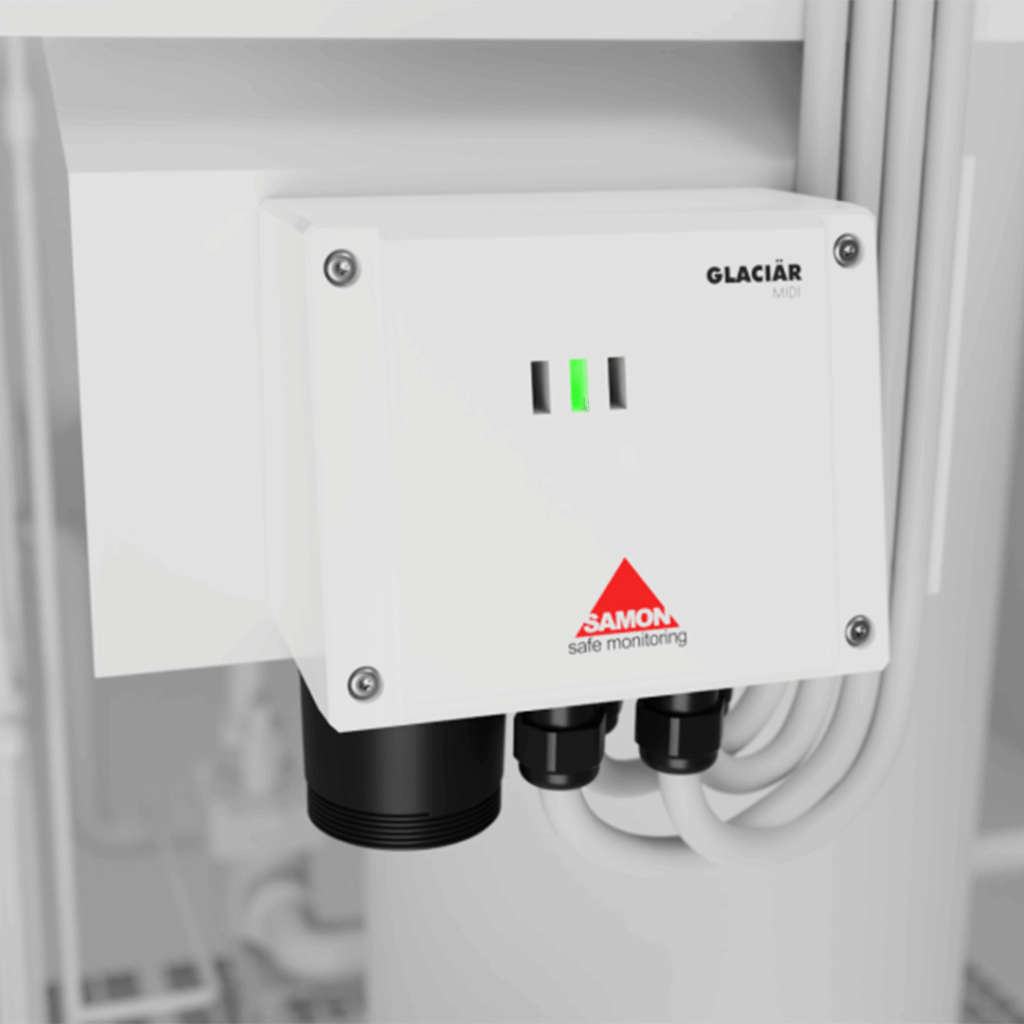

GLACIÄR MIDI Refrigerant Gas Detector
Affordable Pricing, Reliable Equipment
Simply Reliable Refrigerant Gas Detection
Contact for Pricing
Professional IP67-rated refrigerant gas detector with pre-calibrated sensors and mobile app connectivity. Suitable for all refrigeration environments with -40°C to +50°C operating range.
Availability: In Stock
Ships: Contact for Lead Time
Key Features
- IP67-rated enclosure for harsh environments
- Pre-calibrated sensor with certificate
- Built-in or remote sensor options
- High-intensity LED status indicators
- Bluetooth® connectivity for app configuration
- Modbus RTU over RS-485 communication
- Selectable analog output (4-20mA, 0-10V, etc.)
- Service & End-of-Life counter
- Two SPDT relay outputs
- Compatible with all major refrigerants
Technical Specifications
| General Specifications | |
|---|---|
| Operating Temperature | -40°C to +50°C (-40°F to +122°F) |
| Operating Voltage | 24 VDC/VAC ±20%, 50/60 Hz |
| Power Consumption | Max 5W, 170mA @ 24VDC |
| Enclosure Protection | IP67 |
| Enclosure Material | Polycarbonate |
| Dimensions (Built-In) | 134 x 102 x 54 mm |
| Weight (Built-In) | 430 g |
| Humidity Range | 5 to 90% RH, non-condensing |
| Pressure Range | 75 kPa to 106 kPa |
| Communication & Outputs | |
|---|---|
| Analog Output | 4-20mA (default), 1-5V, 0-10V, 2-10V selectable |
| Digital Communication | Modbus RTU over RS-485 (galvanically isolated) |
| Baud Rate | 9,600 or 19,200 (default) |
| Relays | 2 SPDT, 1A @ 24 VAC/VDC |
| Wireless | Bluetooth® BLE for service app |
| Visual Indicator | Multi-color Status LED |
Available Models
CO₂ Detection
Type: Infrared Sensor
Range: 0-10,000 ppm
Part #: 31-210-32 (Built-in)
Part #: 31-510-32 (Remote)
HFC/HFO Group 1
Detects: R32, R407A/C/F, R410A, R448A, R449A, R452A/B, R454A/B/C, R507A
Range: 0-1,000 ppm
Part #: 31-220-12 (Built-in)
Part #: 31-520-12 (Remote)
HFC/HFO Group 2
Detects: R134a, R404A, R450A, R513A, R1234yf/ze
Range: 0-1,000 ppm
Part #: 31-220-17 (Built-in)
Part #: 31-520-17 (Remote)
NH₃ (Ammonia)
Type: Electrochemical Sensor
Ranges: 0-100, 0-1,000, 0-5,000 ppm
Part #: 31-250-22/23/24 (Built-in)
Part #: 31-550-22/23/24 (Remote)
R290 & Hydrocarbons
Detects: R290, R50, R600a, R1150, R1270
Range: 0-4,000 ppm
Part #: 31-290-13 (Built-in)
Part #: 31-590-13 (Remote)
Certifications & Standards
- EMC Directive: 2014/30/EU
- LVD Directive: 2014/35/EU
- RED Directive: 2014/53/EU
- Standards: EN 61010-1, UL 61010-1, EN 378, ASHRAE 15, EN 14624
Applications
The GLACIÄR MIDI is suitable for all refrigeration environments including:
- Cold storage facilities
- Supermarkets and retail refrigeration
- Industrial refrigeration plants
- HVAC systems
- Machine rooms
- Chiller plants
Warranty & Support
Warranty: 12 months from date of purchase on manufacturing defects
Calibration: Pre-calibrated with certificate included
Support: Mobile app available for Android™ and iOS
Return Policy: View our return policy
